GPRO® V20 Series
The GPRO V20-115 series is the next-generation modular vane pump for stationary applications fueling large equipment. The V20 is engineered to deliver consistent high-pressure performance from a tough, hard-working modular vane pump. 115V AC motor delivers up to 20 GPM (76 L/min). It’s fast and flexible; able to load up to 600 gallons of fuel. Includes a quick-fit modular system (4 bolts and an O-ring) that allows easy, leak-free attachment of filter, meter, or both. Extreme Temperature (XT) models available. Whether your business is agriculture, construction, or managing vehicle fleets, staying fueled up is critical, and it must be a quick and dependable process.

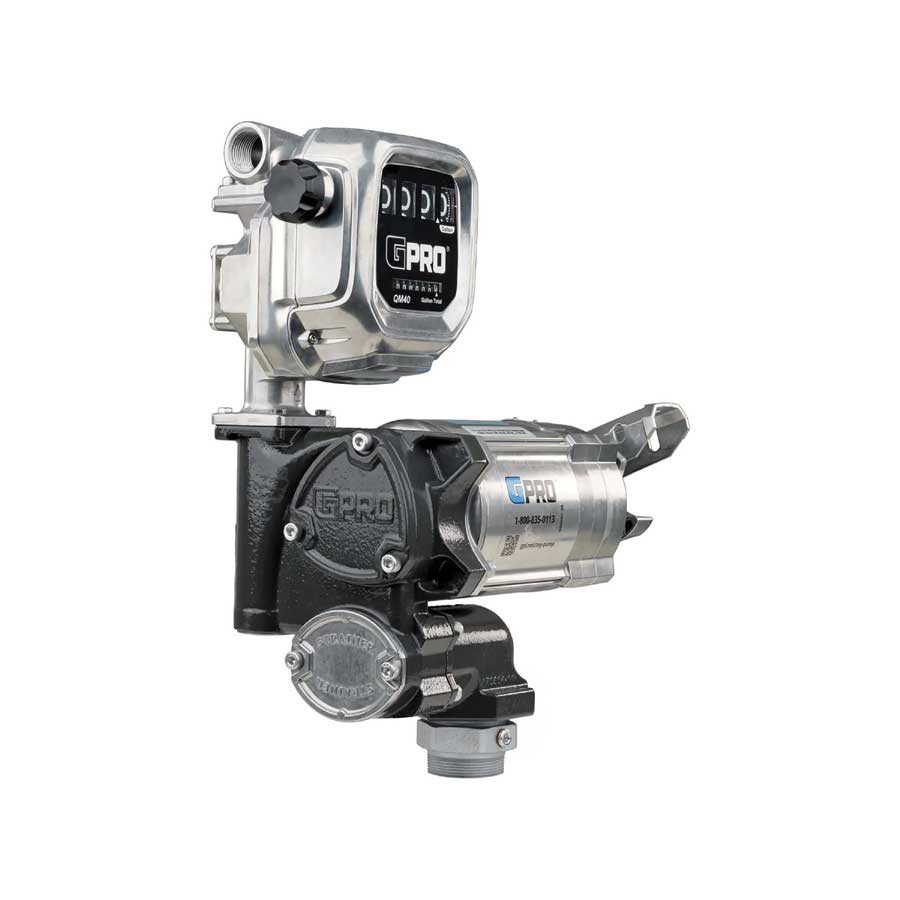

The GPRO QM40 Mechanical Fuel Meter provides precision fuel measurements for more accurate readings for fleet operations, heavy equipment, and agricultural applications. It features a magnetic drive mechanism that is nearly frictionless; less friction results in more flow. The QM40 easily attaches to the new modular fuel transfer pumps with the Quick-Fit Modular feature, simple four-bolt connections.
For ground-based refueling only. Do not use or mount in or on the aircraft. For use with aviation gasoline (Avgas 100LL), Jet A, and Jet A-1. User should consult NFPA 407 Standard for Aircraft Fuel Servicing for safety requirements during ground fuel servicing of aircraft using liquid petroleum fuels. This product has no actual or implied compliance with this standard. Owners and operators are responsible for compliance to all applicable regulations.
Specification
Manuals / Documents
| Max. Flow Rate: | 20 GPM (76 L/min) |
| Voltage Input: | 115V (AC) 60Hz, 230V (AC) 50/60Hz Dual Voltage Configurable |
| Technology: | Sliding Vane |
| Amps Rated: | 5.2 amps |
| Duty Cycle: | 30 min on/30 min off |
| Power Cord: | Not Included |
| Max. Discharge Pressure: | 25 PSI (1.72 bar) |
| Operating Temperature: | -20° F to 125° F (-29° C to 52° C) |
| Suction Lift: | Up to 15 ft. (4.5 m) at Sea Level 70° F (21.1° C) |
| Discharge Lift: | Up to 18 ft. (5.5 m) at Sea Level 70° F (21.1° C) |
| Pump Housing Material: | Cast Iron |
| Wetted Materials: | Acetal | Aluminum | Carbon | Cast Iron | FKM | NBR | PBT/Polyester | Steel |
| Mounting Type/Thread: | Direct Mount, 2in. MNPT |
| Suction Pipe: | Not included |
| Inlet: | 1 in. FNPT |
| Outlet: | Modular, 1 in. FNPT |
| Dispensing Hose: | Not included |
| Nozzle: | Not included |
| Nozzle Holder Type: | Lockable with Drip Catch |
