Petroleum Flow Meters

Liquid Controls M-Series Flow Meters

Liquid Controls
Get a Quote

M-Series

Liquid Controls M-Series rotary motion positive displacement (PD) meters offer the ultimate in measurement accuracy for custody transfer of petroleum products, aviation fuels, LPG, and a broad range of industrial liquids. LC meters incorporate a unique design, presenting minimal intrusion in a flowing stream of liquid, as well as minimal pressure drop through the meter. The LC meter consists of a housing in which three synchronized rotors turn with no metal-to-metal contact. Hydraulic sealing is accomplished by a stationary boundary layer of liquid, not by the wiping action of mechanical parts.

Brand: . Category: .
  • Models
  • Features

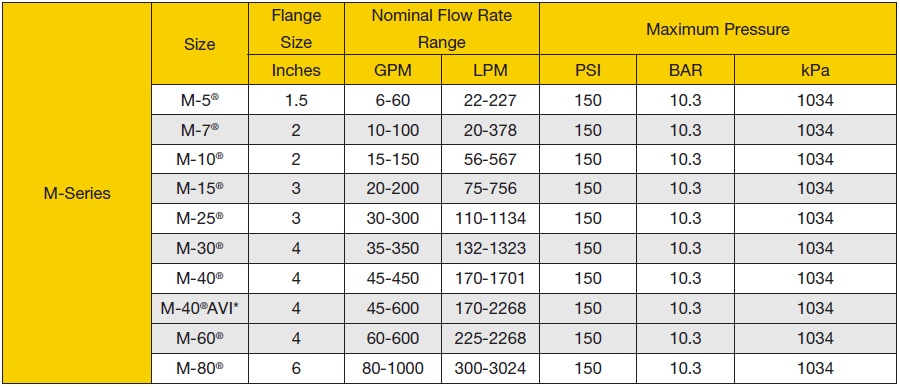

  • Specs Chart

  • Sustained Accuracy

    No metal-to-metal contact inside the measuring chamber means minimal deterioration in accuracy over time, fewer recalibrations, and longer service life.

  • Meters conform to NIST and International Weights and Measures accuracy requirements.

  • Wide Temperature Range

    Products can be metered accurately from -40° F (-40° C) to 160° F (71°C).

  • Wide Viscosity Range

    LC meters can accurately meter products from less than 30 SSU (less than 1 centipoise) to 1,500,000 SSU (325,000 centipoise).

  • Maximum Adaptability

    Right angle design with choice of stock or custom elbows/ fittings provides unequaled mounting flexibility to meet your installation requirements.

  • High Pressure rating

    Rated to 150psi / 10.5 BAR.

M-5® Meters

M-5® meters are used in refined petroleum products, aviation fuels, LPG, foods and beverages, petrochemicals

Meter ClassesDescriptionBearing Material
1 Refined petroleum productsNi-Resist*
2Aviation and jet fuelNi-Resist*
3Liquid sugars, sweeteners, syrups, vegetable oilsNi-Resist*
4Treated waters and solvents where no red metals are allowedCarbon
14Crude oilNi-Resist
16General solventsCarbon

*carbon bearings are standard on some meter sizes of this class, please consult factory.
*Teflon bearings optional on some meter sizes, please consult factory.

M-5® Specs:

  • Rating:

    60 GPM (227 LPM), 150 psi (10.3 bar, 1034 kPa)

  • Flange:

    1-1/2″, 2″

  • Meter Construction:

    Aluminum or Stainless Steel

  • Seals:

    Buna/Viton®as noted by catalog number

  • Maximum Pressure:

    150psi (as listed by catalog number)

  • Temperature:

    -40° to 185° F

M-7® Meters

M-7® meters are used in refined petroleum products, aviation fuels, LPG, petrochemicals, diesel exhaust fluid (DEF)

Meter ClassesDescriptionBearing Material
1 Refined petroleum productsNi-Resist*
2Aviation and jet fuelNi-Resist*
3Liquid sugars, sweeteners, syrups, vegetable oilsNi-Resist*
4Treated waters and solvents where no red metals are allowedCarbon
8Acid pH liquids including: Nitric acid, phosphoric acid, glacial acetic acids, citric juices, vinegarCarbon**
14Crude oilNi-Resist
16General solventsCarbon
18Diesel exhaust fluid (DEF)Ni-Resist

*carbon bearings are standard on some meter sizes of this class, please consult factory.
*Teflon bearings optional on some meter sizes, please consult factory.

M-7® Specs:

  • Rating:

    100 GPM (378 LPM), 150 psi (10.3 bar, 1034 kPa)

  • Flange:

    1-1/2″, 2″

  • Meter Construction:

    Aluminum or Stainless Steel

  • Seals:

    Buna/Viton®/EPDM as noted by catalog number

  • Maximum Pressure:

    150psi (as listed by catalog number)

  • Temperature:

    -40° to 185° F

M-10® Meters

M-10® Meters for metering refined petroleum products such as leaded and unleaded gasoline, aviation fuels, fuel oils, diesel fuel, kerosene, and ethylene glycol (antifreeze) at rated capacity.

Meter ClassesDescriptionBearing Material
1 Refined petroleum productsNi-Resist*
2Aviation and jet fuelNi-Resist*

*(carbon bearings are standard on some meter sizes of this class, please consult factory)

M-10® Specs:

  • Rating:

    150 GPM (568 LPM), 150 psi (10.3 bar, 1034 kPa)

  • Flange:

    2″

  • Meter Construction:

    Aluminum

  • Seals:

    Buna/Viton® as noted by catalog number

  • Maximum Pressure:

    150psi (as listed by catalog number)

  • Temperature:

    -40° to 185° F

M-15® Meters

M-15® meters are used in refined petroleum products, aviation fuels, foods and beverages, petrochemicals.

Meter ClassesDescriptionBearing Material
1 Refined petroleum productsNi-Resist*
2Aviation and jet fuelNi-Resist*
3Liquid sugars, sweeteners, syrups, vegetable oilsNi-Resist*
4Treated waters and solvents where no red metals are allowedCarbon
16General solventsCarbon

*(carbon bearings are standard on some meter sizes of this class, please consult factory)

M-15® Specs:

  • Rating:

    200 GPM (756 LPM), 150 psi (10.3 bar, 1034 kPa)

  • Flange:

    1.5″, 2″

  • Meter Construction:

    Aluminum or Stainless Steel

  • Seals:

    Buna/Viton® as noted by catalog number

  • Maximum Pressure:

    150psi (as listed by catalog number)

  • Temperature:

    -40° to 185° F

  • Bearing Material Recommended:

    Ni-Resist (carbon bearings are standard on some meter sizes of this class, please consult factory)

M-25® Meters

M-25® Meters for metering refined petroleum products such as leaded and unleaded gasoline, aviation fuels, fuel oils, diesel fuel, kerosene, and ethylene glycol (antifreeze) at rated capacity.

Meter ClassesDescriptionBearing Material
1 Refined petroleum productsNi-Resist*
2Aviation and jet fuelNi-Resist*

*(carbon bearings are standard on some meter sizes of this class, please consult factory)

M-25® Specs:

  • Rating:

    300 GPM (1134 LPM), 150 psi (10.3 bar, 1034 kPa)

  • Flange:

    3″

  • Meter Construction:

    Aluminum

  • Seals:

    Buna/Viton® as noted by catalog number

  • Maximum Pressure:

    150psi (as listed by catalog number)

  • Temperature:

    -40° to 185° F

M-30® Meters

M-30® meters are used in refined petroleum products, aviation fuels, petrochemicals.

Meter ClassesDescriptionBearing Material
1 Refined petroleum productsNi-Resist*
2Aviation and jet fuelNi-Resist*
14Crude oilNi-Resist*
16General solventsCarbon

*(carbon bearings are standard on some meter sizes of this class, please consult factory)

M-30® Specs:

  • Rating:

    350 GPM (1323 LPM), 150 psi (10.3 bar, 1034 kPa)

  • Flange:

    4″

  • Meter Construction:

    Aluminum

  • Seals:

    Buna/Viton® as noted by catalog number

  • Maximum Pressure:

    150psi (as listed by catalog number)

  • Temperature:

    -40° to 185° F

  • Bearing Material Recommended:

    Ni-Resist (carbon bearings are standard on some meter sizes of this class, please consult factory)

M-40® Meters

M-40® Meters for metering refined petroleum products such as leaded and unleaded gasoline, aviation fuels, fuel oils, diesel fuel, kerosene, and ethylene glycol (antifreeze) at rated capacity.

Meter ClassesDescriptionBearing Material
1 Refined petroleum productsNi-Resist*
2Aviation and jet fuelNi-Resist*

*(carbon bearings are standard on some meter sizes of this class, please consult factory)

M-40® Specs:

  • Rating:

    450 GPM (1701 LPM), 150 psi (10.3 bar, 1034 kPa)

  • Flange:

    4″

  • Meter Construction:

    Aluminum

  • Seals:

    Buna/Viton® as noted by catalog number

  • Maximum Pressure:

    150psi (as listed by catalog number)

  • Temperature:

    -40° to 185° F

M-40® AVI Meters

M-40® AVI Meters for metering all classes of aviation fuels.

Meter ClassesDescriptionBearing Material
2Aviation fuels including jet A, jet A-1, avgasNi-Resist*

*(carbon bearings are standard on some meter sizes of this class, please consult factory)

M-40® AVI Specs:

  • Rating:

    600 GPM (2268 LPM), 275 psi (19 bar, 1900 kPa);

  • Flange:

    4″

  • Meter Construction:

    Aluminum

  • Seals:

    Buna/Viton® as noted by catalog number

  • Maximum Pressure:

    275 psi (as listed by catalog number)

  • Temperature:

    -40° to 185° F

M-60® Meters

M-60® Meters for metering refined petroleum products such as leaded and unleaded gasoline, aviation fuels, fuel oils, diesel fuel, kerosene, ethylene glycol (antifreeze), as well as crude oil.

Meter ClassesDescriptionBearing Material
1 Refined petroleum productsCarbon
2Aviation and jet fuelCarbon

M-60® Specs:

  • Rating:

    600 GPM (2268 LPM), 150 psi (10.3 bar, 1034 kPa)

  • Flange:

    4″

  • Meter Construction:

    Aluminum or Stainless Steel

  • Seals:

    Buna/Viton® as noted by catalog number

  • Maximum Pressure:

    275 psi (as listed by catalog number)

  • Temperature:

    -40° to 185° F

M-80® Meters

M-80® Meters for metering all classes of aviation fuels.

Meter ClassesDescriptionBearing Material
2Aviation fuels including jet A, jet A-1, avgasNi-Resist*

*(carbon bearings are standard on some meter sizes of this class, please consult factory)

M-80® Specs:

  • Rating:

    (4″) – 600 GPM (2268 LPM), 275 psi (19 bar, 1900 kPa); / (6″) – 1000 GPM (38 LPM), 275 psi (19 bar, 1900 kPa)

  • Flange:

    4″, 6″

  • Meter Construction:

    Aluminum

  • Seals:

    Buna/Viton® as noted by catalog number

  • Maximum Pressure:

    275 psi (as listed by catalog number)

  • Temperature:

    -40° to 185° F
